Sheet Cakes

Here are some equipment to improve your speed and the accuracy of your baking sheet portions. All your recipes are pre-programmed in a user-friendly interface to avoid product rejections. They are ideal assist innovators in their product development: straight cuts, diagonal cuts, speed variation, and ultrasonic amplitude variation. We offer a choice of equipment for stand-alone and continuous station process. Our experts will guide and advise you to ensure that the equipment you choose will make the difference on your production line.



N.B. All equipment is made of stainless steel and high-quality components to meet the highest sanitary standards in the industry. If you cannot find the equipment you are looking for in our line of products, we will design and manufacture one to fit your specific needs.

Our solutions

Autonomous

Continuous

Need advice on choosing the best solution for your needs?


Contact our ultrasonic cutting experts

Return to the previous page

MSR-110

View Details

  • Application :

    Sheet, Diagonal

  • Speed :

    Up to 90/h

  • Product Size Accepted :

    Maximum slab: 24″ x 16″ (610 mm x 405 mm)
    Maximum height: 3 1/4″ (82 mm)

  • Portion Range :

    Programmable

  • Dimensions :

    Lenght: 91'' (2311 mm)
    Width: 53'' (1346 mm)
    Height: 80'' (2032 mm)

  • Power :

    240 volts
    1 phase
    40 amps

  • Compressed Air :

    100 PSI

This is the most versatile equipment of our product line. It is ideal for manufacturers who need to cut round cakes, sheet cakes, loaf cakes,
and products inside boxes. Up to 100 different SKUs can be programmed on this equipment. It is ideal for the manufacturer who has several product changes per day
and who seeks constant quality at a higher speed. The power of the guillotine ensures that even the most challenging products can be cut repeatedly, and its servomotors allow for gentle movements to produce a perfectly sliced product. The cutting table is equipped with two servomotors that ensure the highest precision for your portion sizes. The guillotine is equipped with two servomotors, which provides you with precision and high-cutting speed. This machine is equipped with one half-wave ultrasonic blade for a total of 12″ of slicing. This machine is made of stainless steel, and its design allows easy cleaning with a low-pressure water jet.

This is the most versatile equipment of our product line. It is ideal for manufacturers who need to cut round cakes, sheet cakes, loaf cakes,
and products inside boxes. Up to 100 different SKUs can be programmed on this equipment. It is ideal for the manufacturer who has several product changes per day
and who seeks constant quality at a higher speed. The power of the guillotine ensures that even the most challenging products can be cut repeatedly, and its servomotors allow for gentle movements to produce a perfectly sliced product. The cutting table is equipped with two servomotors that ensure the highest precision for your portion sizes. The guillotine is equipped with two servomotors, which provides you with precision and high-cutting speed. This machine is equipped with one half-wave ultrasonic blade for a total of 12″ of slicing. This machine is made of stainless steel, and its design allows easy cleaning with a low-pressure water jet.

Ask for a quote

MSR-210 PU

View Details

  • Application :

    Sheet

  • Speed :

    Up to 180/h

  • Product Size Accepted :

    Maximum slab: 24″ x 16″ (610 mm x 405 mm)
    Maximum height: 3 1/4″ (82 mm)

  • Portion Range :

    Programmable

  • Dimensions :

    Length: 62" (1575 mm)
    Width: 47" (1194 mm)
    Height: 81" (2057 mm)

  • Power :

    240 volts
    1 phase
    60 amps

  • Compressed Air :

    100 PSI

Up to 100 different SKUs can be programmed on this equipment. It is ideal for the manufacturer who has several product changes per day and who seeks constant quality at a higher speed.
The power of the guillotine ensures that even the most challenging products can be cut repeatedly, and its servomotors allow for gentle movements to produce a perfectly sliced product.
The cutting table is equipped with two servomotors that ensure the highest precision for your portion sizes.
This machine is equipped with two half-wave ultrasonic blades for a total of 28″ of slicing. It is ideal for 26 × 18 baking sheets or round cakes up to 3.5″ high.
This machine is made of stainless steel, and its design allows easy cleaning with a low-pressure water jet.

Ask for a quote

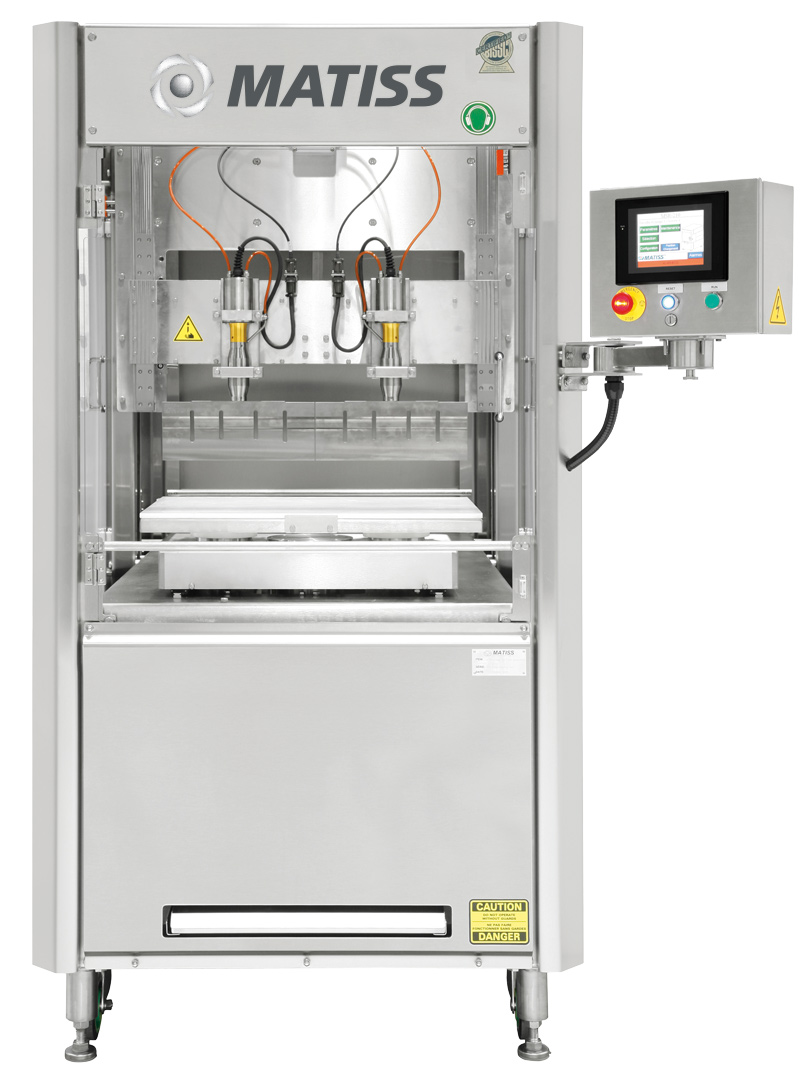

MSR-210 SU

View Details

  • Application :

    Sheet

  • Speed :

    Up to 180/h

  • Product Size Accepted :

    Maximum slab: 24″ x 16″ (610 mm x 405 mm)
    Maximum height: 3 1/4'' (82 mm)

  • Portion Range :

    Programmable

  • Dimensions :

    Lenght: 80'' (2032 mm)
    Width: 42'' (1067 mm)
    Height: 80'' (2032 mm)

  • Power :

    208 volts
    3 phases
    100 amps

  • Compressed Air :

    100 PSI

Up to 100 different SKUs can be programmed on this equipment. It is ideal for the manufacturer who has several product changes per day and who seeks constant quality at a higher speed.
The power of the guillotine ensures that even the most challenging products can be cut repeatedly, and its servomotors allow for gentle movements to produce a perfectly sliced product.
The cutting table is equipped with two servomotors that ensure the highest precision for your portion sizes.
This machine is equipped with two half-wave ultrasonic blades for a total of 28″ of slicing. It is ideal for 26 × 18 baking sheets or round cakes up to 3.5″ high.
This machine is made of stainless steel, and its design allows easy cleaning with a low-pressure water jet.

Up to 100 different SKUs can be programmed on this equipment. It is ideal for the manufacturer who has several product changes per day and who seeks constant quality at a higher speed.
The power of the guillotine ensures that even the most challenging products can be cut repeatedly, and its servomotors allow for gentle movements to produce a perfectly sliced product.
The cutting table is equipped with two servomotors that ensure the highest precision for your portion sizes.
This machine is equipped with two half-wave ultrasonic blades for a total of 28″ of slicing. It is ideal for 26 × 18 baking sheets or round cakes up to 3.5″ high.
This machine is made of stainless steel, and its design allows easy cleaning with a low-pressure water jet.

Ask for a quote

Robot (cut on the belt)

View Details

  • Application :

    Sheet

  • Speed :

    Up to 90/h

  • Product Size Accepted :

    Maximum slab: 24″ x 16″ (610 mm x 405 mm)
    Maximum height: 3 1/4″ (82 mm)

  • Portion Range :

    Programmable

  • Dimensions :

    Lenght: 146'' (3708 mm)
    Width: 57'' (1448 mm)
    Height: 84'' (2134 mm)

  • Power :

    240 volts
    1 phase
    65 amps

  • Compressed Air :

    100 PSI

An ultrasonic blade at the end of a robot arm—this is the most flexible solution for your production operations.
This machine is equipped with an IP-69K robot, which can easily withstand the daily cleaning of your equipment.
The ultrasonic blade has a cleaning container and an automated cleaning cycle, which ensures a high-quality product finish.
The products are moved on a polyurethane belt conveyor featuring two fine-nosed ends for the easy transfer of small products.
Position sensors and internal guiding devices provide excellent product control.
The detection system allows the products to be cut continuously or in a stopped position.
In the stopped position, the system accepts different products (round cakes, sheet cakes, loaf cakes) on custom-made cutting plates.
Up to 100 different SKUs can be programmed on this equipment. It is ideal for the manufacturer who has several product changes per day and who seeks constant quality at a higher speed.
The flexibility and speed of movement of the robot produce a perfectly sliced product.
This machine is made of stainless steel, and its design allows easy cleaning with a low-pressure water jet.

An ultrasonic blade at the end of a robot arm—this is the most flexible solution for your production operations.
This machine is equipped with an IP-69K robot, which can easily withstand the daily cleaning of your equipment.
The ultrasonic blade has a cleaning container and an automated cleaning cycle, which ensures a high-quality product finish.
The products are moved on a polyurethane belt conveyor featuring two fine-nosed ends for the easy transfer of small products.
Position sensors and internal guiding devices provide excellent product control.
The detection system allows the products to be cut continuously or in a stopped position.
In the stopped position, the system accepts different products (round cakes, sheet cakes, loaf cakes) on custom-made cutting plates.
Up to 100 different SKUs can be programmed on this equipment. It is ideal for the manufacturer who has several product changes per day and who seeks constant quality at a higher speed.
The flexibility and speed of movement of the robot produce a perfectly sliced product.
This machine is made of stainless steel, and its design allows easy cleaning with a low-pressure water jet.

Ask for a quote

Robot (cut in a box or sheet)

View Details

  • Application :

    Sheet

  • Speed :

    Up to 90/h

  • Product Size Accepted :

    Maximum slab: 24″ x 16″ (610 mm x 405 mm)
    Maximum height: 3 1/4″ (82 mm)

  • Portion Range :

    Programmable

  • Dimensions :

    Lenght: 126'' (3200 mm)
    Width: 56'' (1422 mm)
    Height: 84'' (2133 mm)

  • Power :

    240 volts
    1 phase
    40 amps

  • Compressed Air :

    100 PSI

An ultrasonic blade at the end of a robot arm—this is the most flexible solution for your production operations.
This machine is equipped with an IP-69K robot, which can easily withstand the daily cleaning of your equipment.
The ultrasonic blade has a cleaning container and an automated cleaning cycle, which ensures a high-quality product finish.
Position sensors and internal guiding devices provide excellent product control.
The detection and clamping system allows you to cut your products in a stopped position with great precision.
In the stopped position, the system accepts different products (round cakes, sheet cakes, loaf cakes) on cutting plates or in moulds.
The flexibility and speed of movement of the robot produce a perfectly sliced product.
This machine is made of stainless steel, and its design allows easy cleaning with a low-pressure water jet.

Ask for a quote

2GHU-2GU

View Details

  • Application :

    Sheet, Diagonal

  • Speed :

    Up to 600/h

  • Product Size Accepted :

    Maximum slab: 24″ x 16″ (610 mm x 405 mm)

  • Portion Range :

    Programmable

  • Dimensions :

    Lenght; 272'' (6909 mm)
    Width: 89'' (2260 mm)
    Height: 94'' (2388 mm)

  • Power :

    230 volts
    3 phases
    200 amps

  • Compressed Air :

    100 PSI

Here is a multifunctional, robust, and fast piece of equipment. If you need to change products frequently and carry out your operations quickly, this is an excellent choice.
This machine is equipped with two powerful ultrasonic guillotines with 360° rotating heads.
Each guillotine has three servomotors with either two 14″ blades or one 12″ blade to cut multiple product sizes.
The products are moved by two polyurethane belt conveyors driven by a servomotor.
Position sensors and internal guiding devices provide excellent product control.
Up to 100 different SKUs can be programmed on this equipment. It is ideal for the manufacturer who has several product changes per day and who seeks constant quality at a higher speed.
The power of the guillotine ensures that even the most challenging products can be cut repeatedly, and its servomotors allow for gentle movements to produce a perfectly sliced product.
This machine is made of stainless steel, and its design allows easy cleaning with a low-pressure water jet.

Ask for a quote
